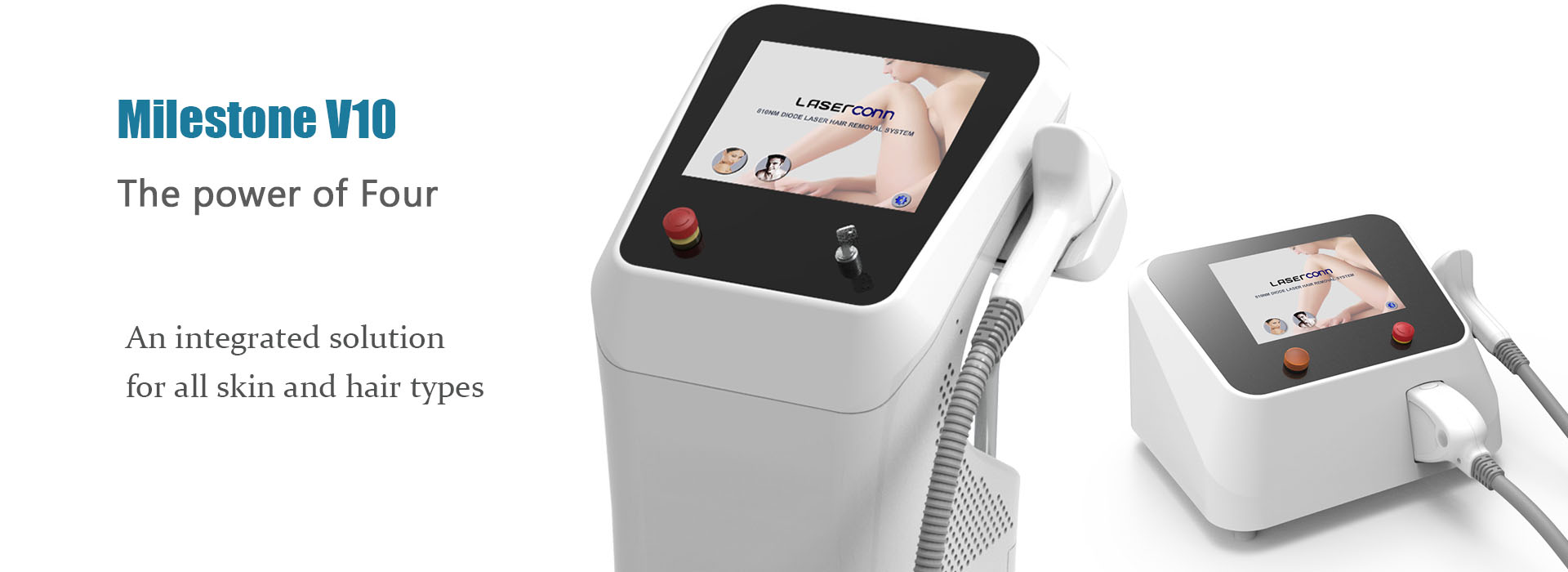

The power of 4   Combines the benefits of four wavelengths - 755nm, 810nm, 940nm, 1064nm

Milestone V10 combines the benefits of 4 wavelengths (755nm, 810nm, 940nm and 1064nm)-achieving superior results compared to any mono-wavelength approach. Using Laserconn’s ground-breaking patent VCSEL technology, this virtually painless laser hair removal solution is suitable for all skin tones, hair types and target areas (body and face). Operating at different wavelengths ensures maximum safety and efficacy in treating all skin prototypes and all types of hair.



755nm offers a more powerful energy absorption, making it ideal for the most diverse hair types, especially light-colored & thin hair.

810nm provides a deep penetration of the hair follicles with a high average power, a high repetition rate and a large stain size for rapid treatment.

940nm offers a better result for removing dark and light, shallowly embedded hair.

1064nm wavelength is characterized by lower melanin absorption, making it a targeted solution for darker skin types.

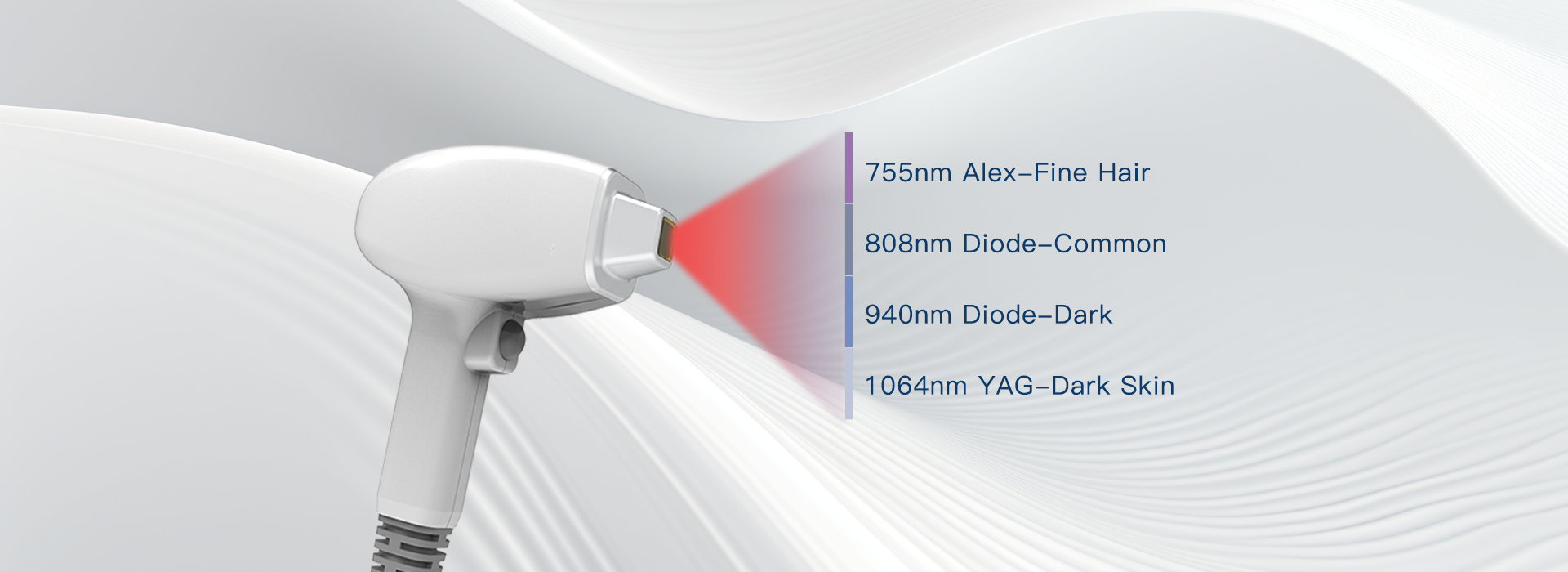

4 waves.png

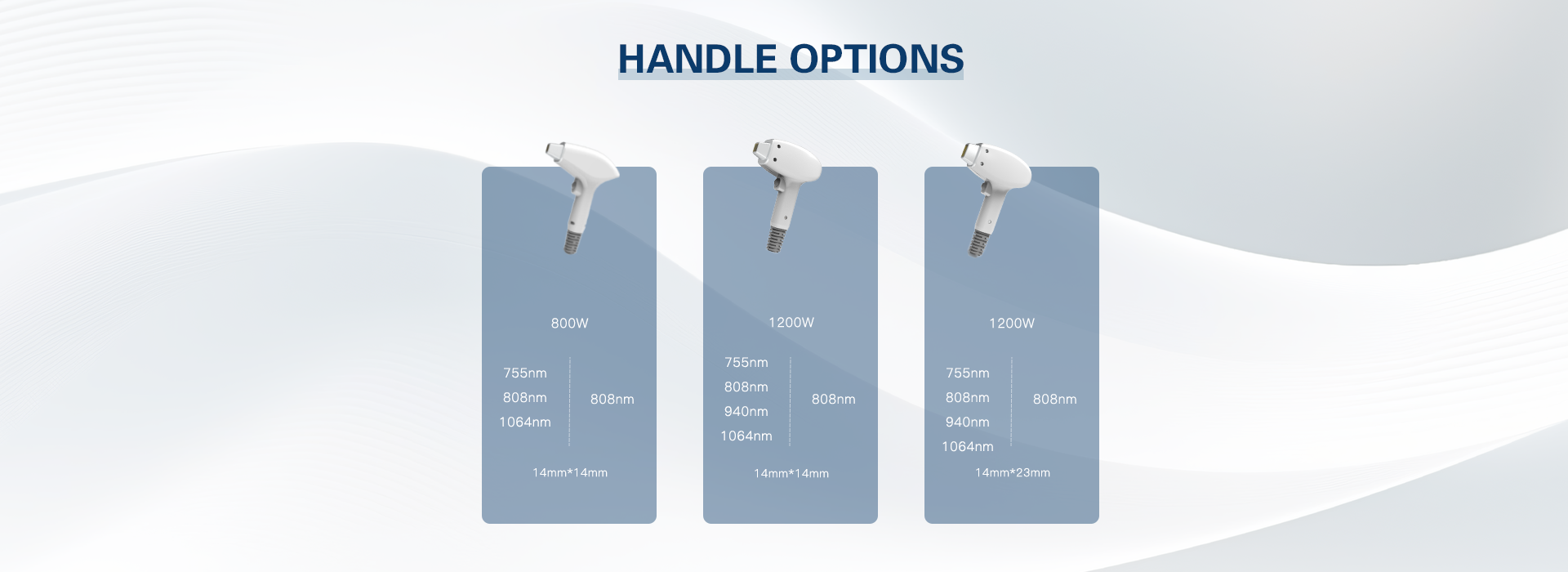

handle options.png

VCSEL Tech

Since 2014, Laserconn first adopted VCSEL on hair removal applications and got patent from US and Europe. This is a revolutionary breakthrough in this filed, its replacing 60% market of the LD bar during the past 10 years.



Meanwhile, we adopt the VCSEL tech on all our production line. Including Alex755 Hair removal, Q-switched laser system for Tattoo removal, Laser therapy, Laser slimming etc. Each time we launch any new product, its a new trend in the market. With such cutting edge tech development, we are ahead of other competitors 3-5 years. Laserconn team is more like a Scientist group, engaging in inventing the developing the best tech and best device for all clients.



VCSEL is short for Vertical cavity surface emitting laser diode, with a big surface for emitting and heat spreading, it can burden temperature over 85℃. Thus it's quite stable.



VCSEL laser advantage 1.png

VCSEL advantage 2.png

Technical Specifications

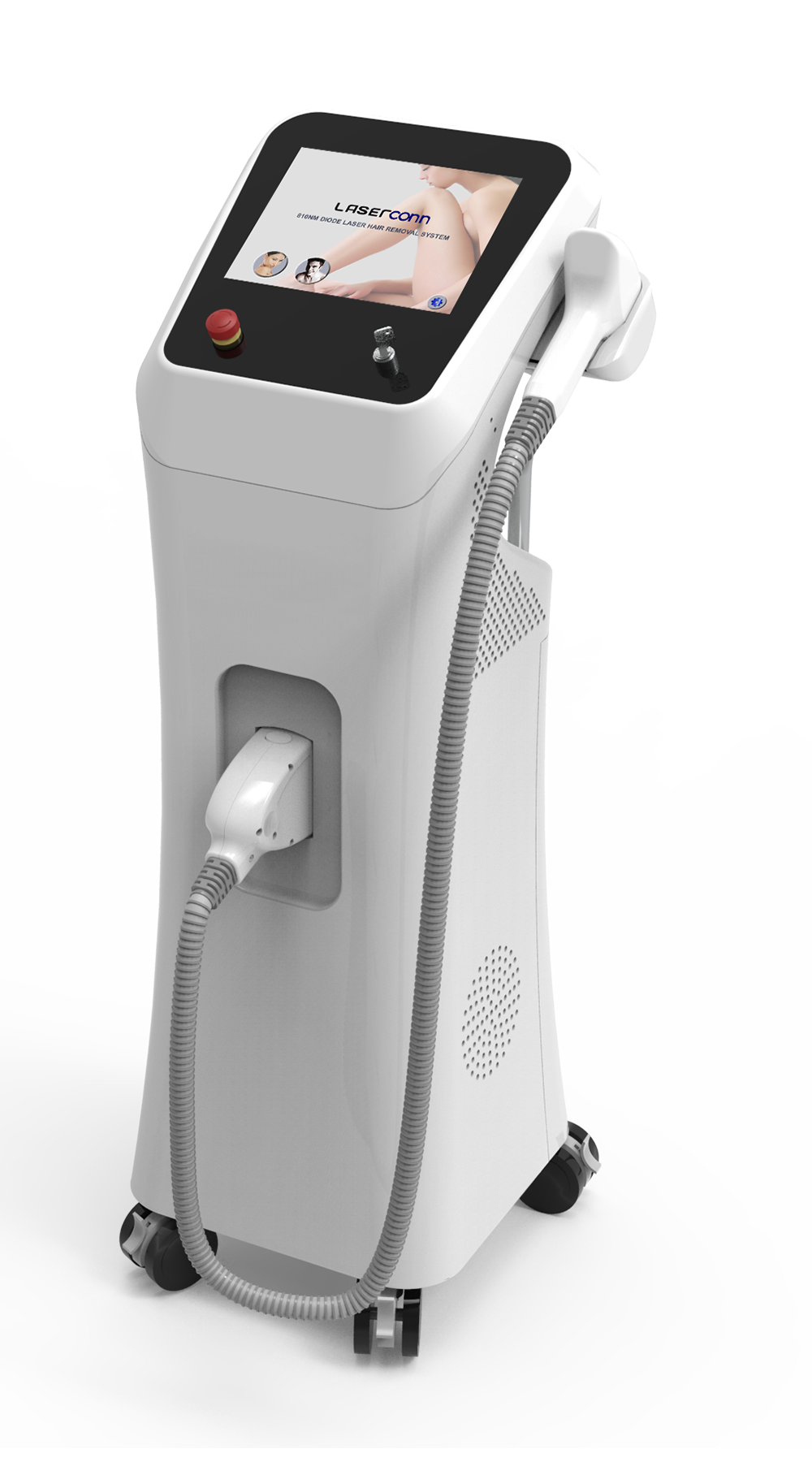

Milestone V10Parameter

vcsel 11.png



Wavelength   755+810+940+1064nm
Laser Power   800W 900W or 1200W
Pulse Width    4~160ms
Frequency      1~10Hz
Fluence          1~100J/cm2

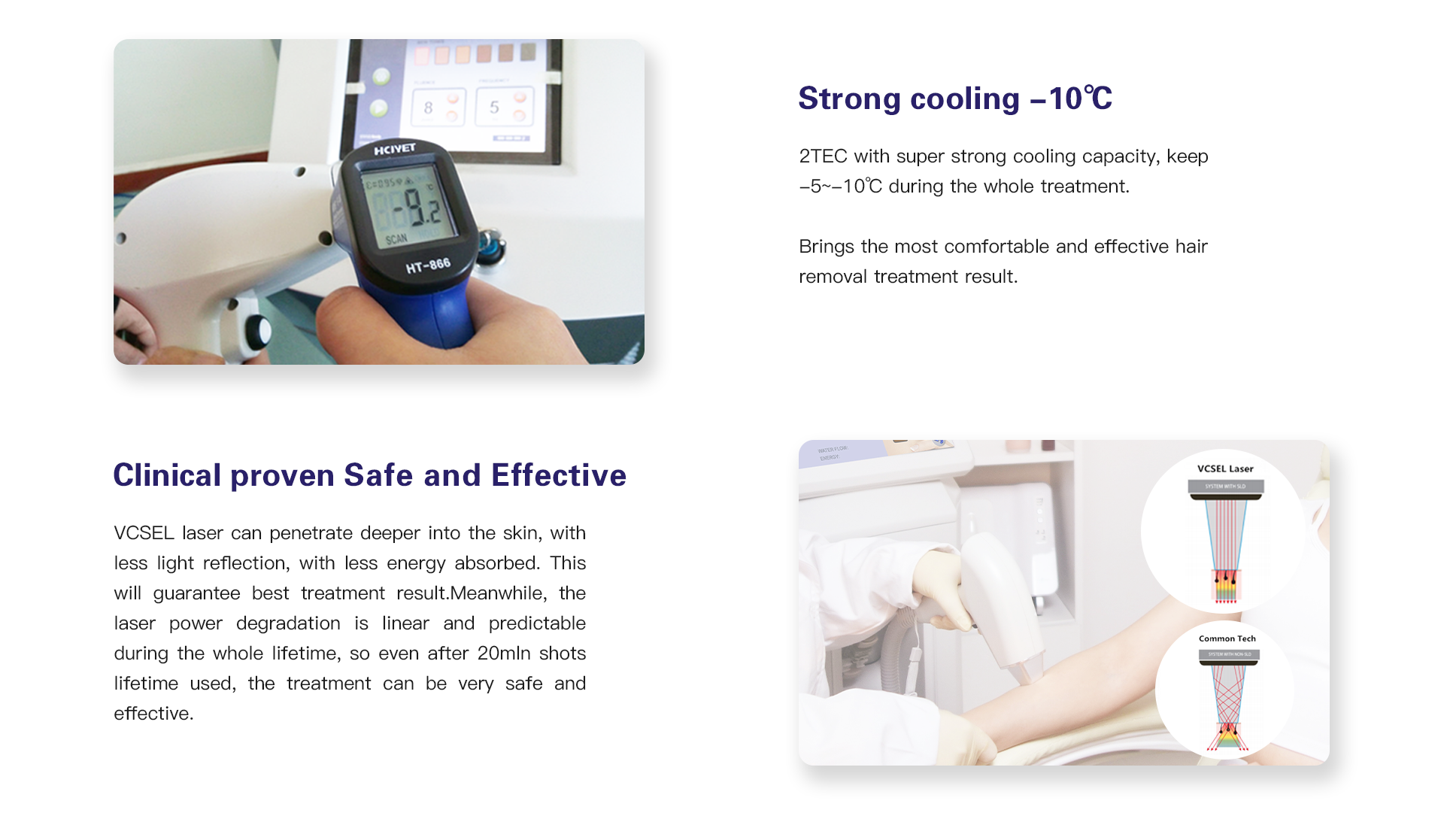

Skin Cooling   -10 to 5℃
Spot size        14x14mm
LCD Screen    10" LCD
Input VAC      110/220VAC / 50-60Hz
Dimension      44×39×107cm
Weight            33KG

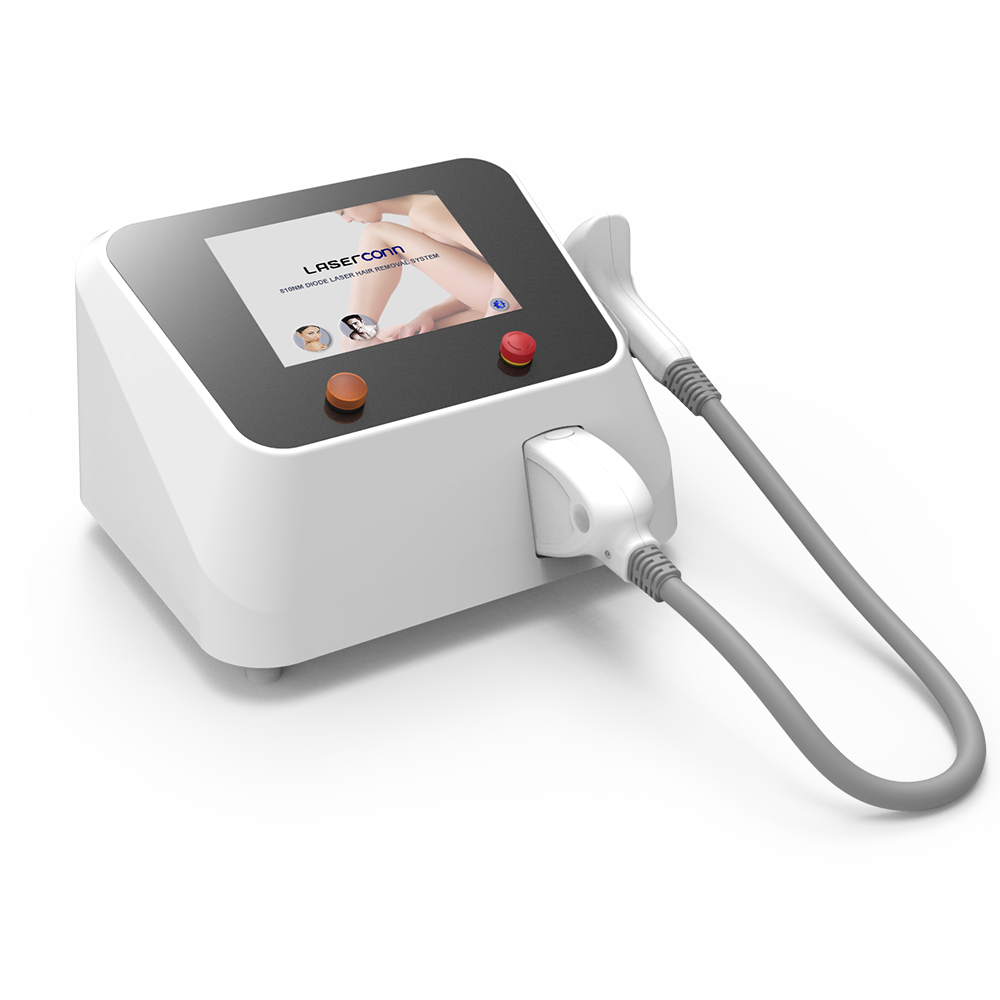

Milestone D10Parameter


Wavelength   755+810+940+1064nm
Laser Power   800W 900W or 1200W
Pulse Width    4~160ms
Frequency      1~10Hz
Fluence          0~100J/cm2
Skin Cooling   -10 to 5℃
Spot size        14x14mm
LCD Screen    8.4" LCD
Input VAC      110/220VAC / 50-60Hz
Dimension      50×39×32cm
Weight           15KG

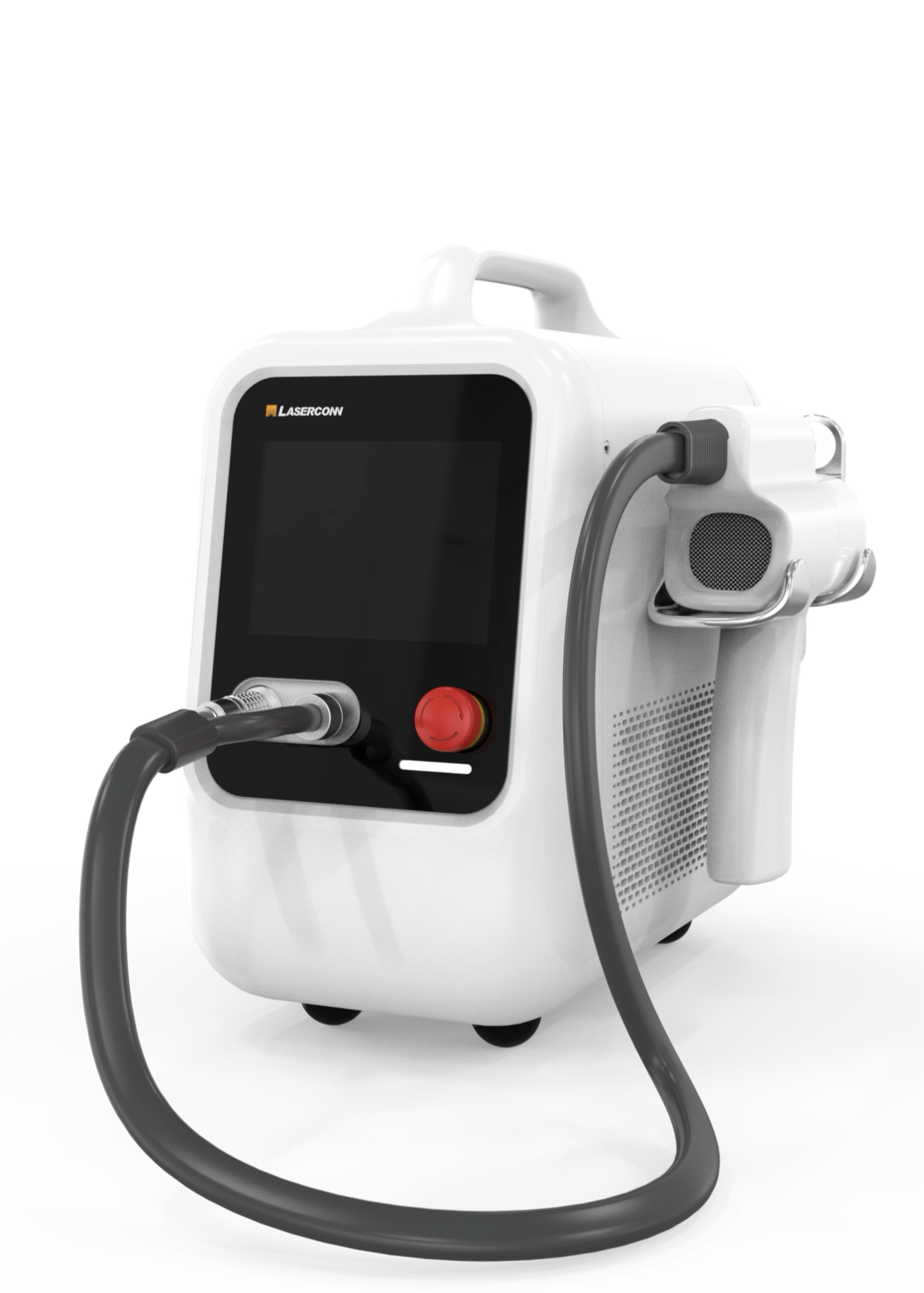

D7-LiteParameter


Wavelength   755+810+940+1064nm
Laser Power   1000W
Pulse Width    2~140ms
Frequency      1~10Hz
Energy            1~60J
Skin Cooling   -10 to 5℃
Spot size        12mm
LCD Screen    10" LCD
Input VAC      110/220VAC / 50-60Hz
Dimension      42×19×35cm
Weight            8KG
