High Power

Laserconn has developed a new generation of hair removal diode laser. The VCSEL tech has positioned itself as one of the best in the market thanks to its stability and effectiveness.



Operating on high power (up to 4000W), the Milestone Super is effective on large and small surface areas. Its two work modes: sliding and stamping, make it possible to work with both high repetition and high energies along a very short pulse duration. Shorter pulse duration will bring  a better treatment result, especially when it's lower than the Thermal Relaxation Time(TRT), the treatment can be very comfortable with very high energy. This makes a huge difference against the rest of the devices in the market in terms of technology and results. It's one of the fastest, safest, most powerful and effective deices in the filed.VCSEL Banner High power Super.jpg

Large Spot

Larger spot size appears to be more effective for laser hair removal treatments because they are able to penetrate more deeply into the skin and target more pigmentation and melanin in hair follicles.



Multiple studies and articles have examined the role of spot size in hair removal treatments and results showed that the use of a larger spot size almost always improved the delay of hair growth. Furthermore, results after using a larger spot size showed longer-lasting hair reduction results many months after a patient’s final treatment session.



Additionally, most laser hair removal treatments are performed on larger body parts (i.e. lower legs, upper legs, back, etc.). Having a larger spot size can make a significant difference in treatment times. A 2 cm2 spot size in comparison to a 1cm2 spot size will allow you to treat patients more quickly, reduce downtime between treatments, and schedule more patients in a day.

big spot high power.png

VCSEL Tech

Since 2014, Laserconn first adopted VCSEL on hair removal applications and got patent from US and Europe. This is a revolutionary breakthrough in this filed, it’s replacing 60% market of the LD bar during the past 10 years.



Meanwhile, we adopt the VCSEL tech on all the production line. Including Alex755 Hair removal, Q-switched laser system for Tattoo removal, Laser therapy, Laser slimming etc. Each time we launch any new product, it’s a new trend in the market. With such cutting edge tech development, we are ahead of other competitors 3-5 years. Laserconn team is more like a “Scientist” group, engaging in inventing the developing the best tech and best device for all clients.

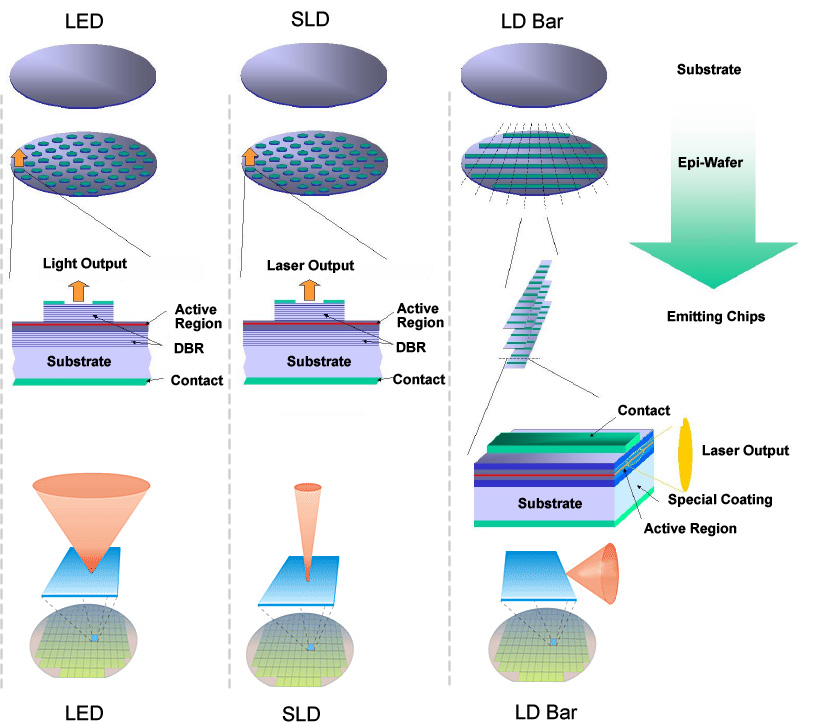

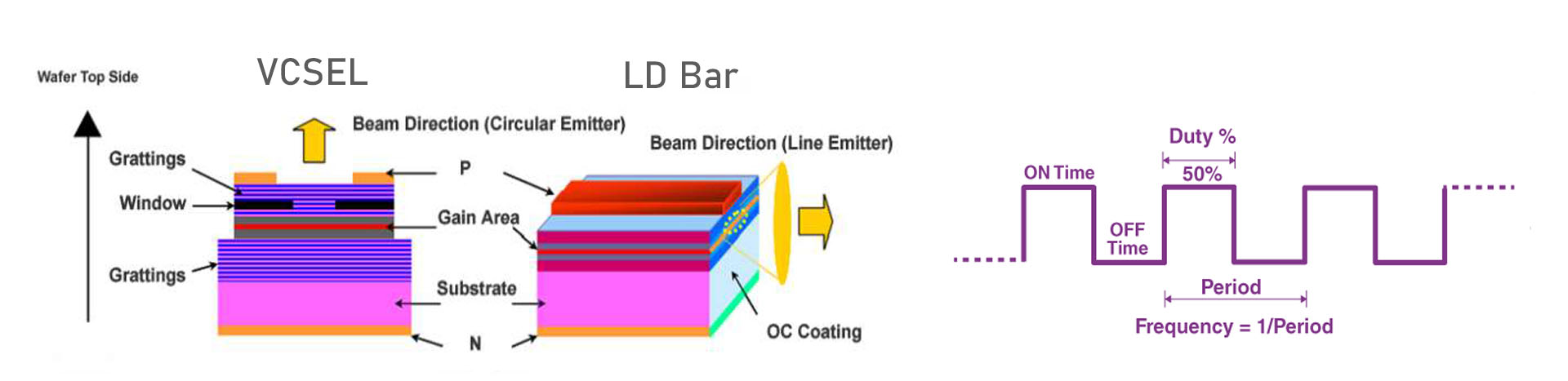

VCSEL is short for Vertical cavity surface emitting laser diode, with a big surface for emitting and heat spreading, it can burden temperature over 85℃. Thus it's quite stable.

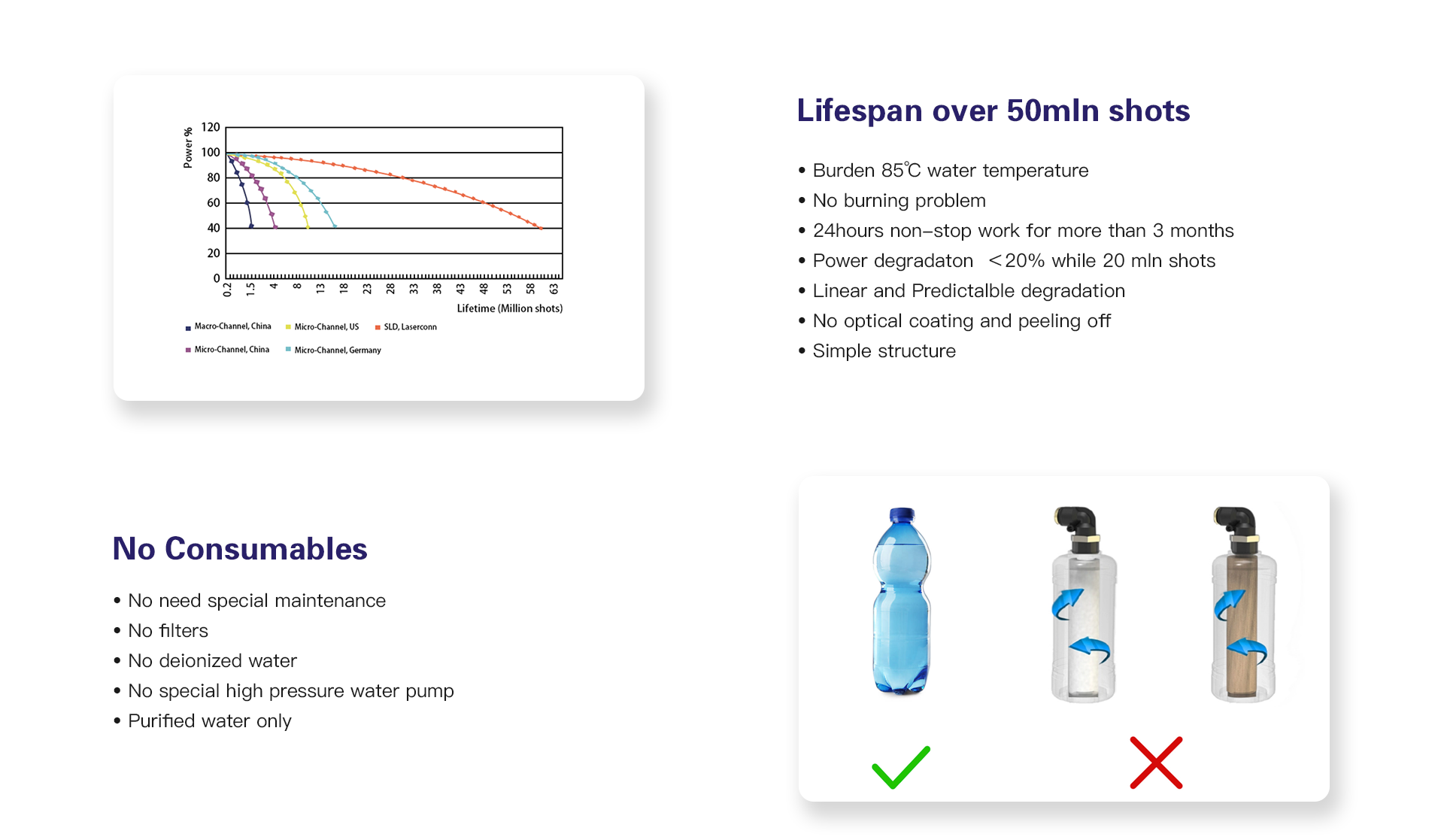

VCSEL laser advantage 1.png

VCSEL advantage 2.png

Technical Specifications


Milestone SuperParameter



Wavelength   810nm
Laser Power   1600W 2400W 3600W 4000W optional
Pulse Width    1~120ms
Frequency      1~10Hz
Fluence          1~100J/cm2
Skin Cooling   -10 to 5℃
Spot size        10x20mm
LCD Screen    12" LCD
Input VAC      110/220VAC / 50-60Hz
Dimension      34×39×105cm
Weight           40KG

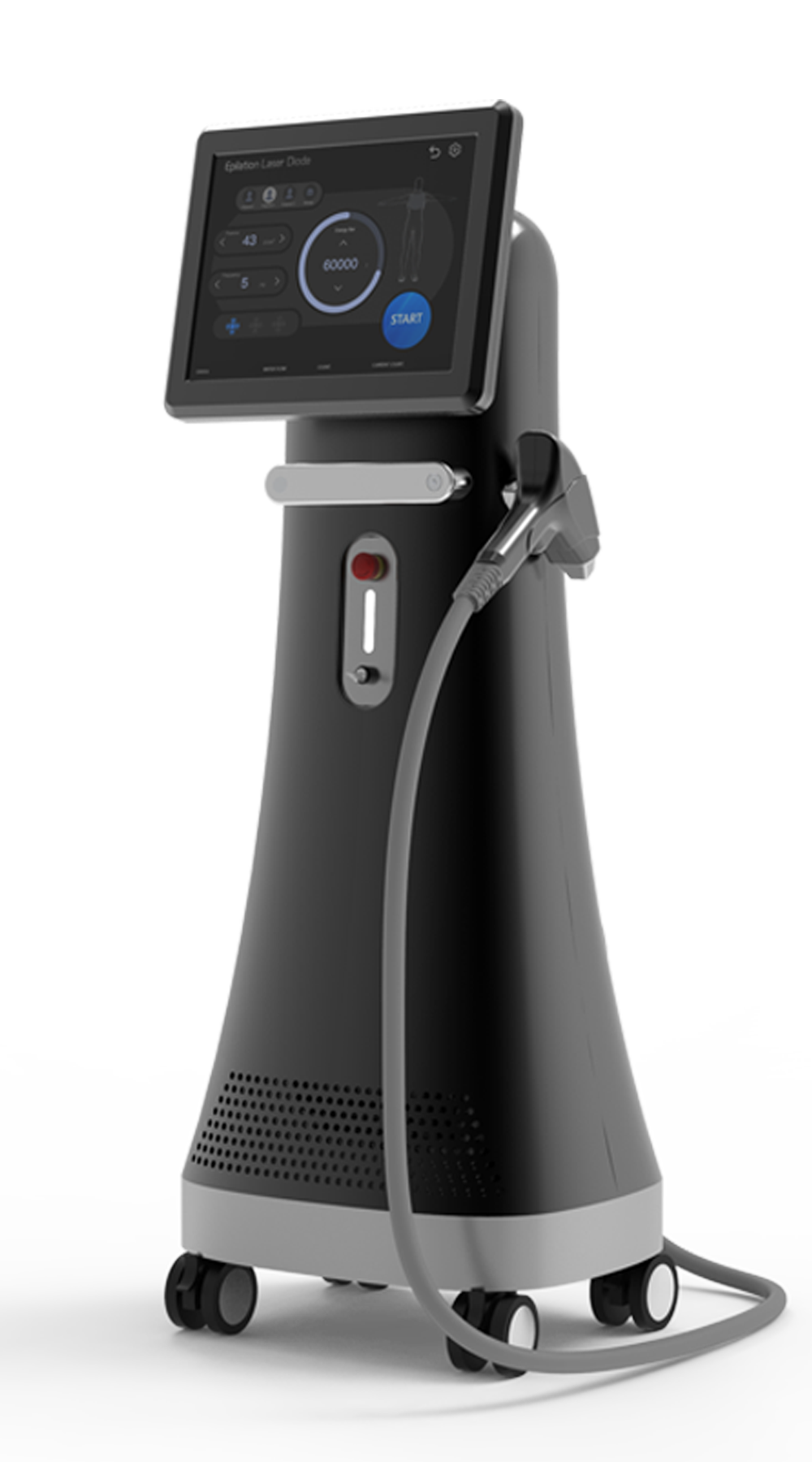

Milestone P20Parameter


Wavelength   810nm
Laser Power   1200W or 1500W
Pulse Width    3~120ms
Frequency      1~10Hz
Fluence          1~100J/cm2
Skin Cooling   -10 to 5℃
Spot size        14x23mm
LCD Screen    15" LCD
Input VAC      110/220VAC / 50-60Hz
Dimension      57×52×140cm
Weight           42KG
