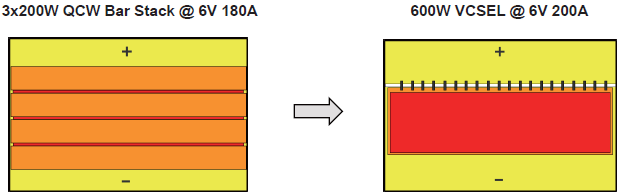

High Power 808nm VCSEL is the perfect source to replace QCW laser bar for Nd:YAG side-pumping. It has very low wavelength shift, high operation temperature, 10+ times longer life time and much lower cost per Watt. LASERCONN designed multijunction VCSEL to reach similar power density to 3-Bar Stacks for direct replacement as following:
ⅰ Heavy Duty Circle 808nm VCSEL Chips
| Model No. | CS9-100Q-808 CS11-100Q-808 | CS1-200Q-808 CS7-200Q-808 CS8-200Q-808 | CS9-200Q-808 CS11-200Q-808 |
| Optical Power @ 250us | 100W QCW | 200W QCW | 200W QCW |
Emitting Area | 2.7x4.6mm | 4.8x4.8mm | 2.7x9.6mm |
| Operation Voltage | 2.1V | 2.1V | 2.1V |
| Operation Current | 110A | 210A | 210A |
| Max PCE | 45% | 45% | 45% |
| Max Duty Circle | 20% | 20% | 20% |
ⅱ High Peak Power 808nm VCSEL Chips
| Model No. | CS9-250Q-808 CS11-250Q-808 | CS1-500Q-808 CS7-500Q-808 CS8-500Q-808 | CS9-600Q-808 CS11-600Q-808 |
| Optical Power @ 250us | 250W QCW | 500W QCW | 600W QCW |
| Emitting Area | 2.7x4.6mm | 4.8x4.8mm | 2.7x9.6mm |
| Operation Voltage | 6V | 6V | 6V |
| Operation Current | 90A | 180A | 200A |
| Max PCE | 50% | 50% | 50% |
| Max Duty Circle | 2.5% | 2.5 | 2.5% |
● Custom chip size and packaging available upon request.

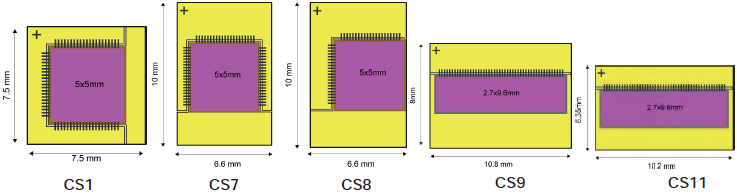

● Standard Packaging:
