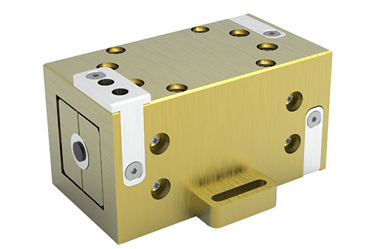

Passively-Cooled VCSEL-Pumped Laser Gain Modules are designed with conductive heatsink for low duty circle and low average power operation.
It is widely used for medical, industrial & scientific applications. The pumping power is from 1KW up to 30KW and the stored energy is from 80mJ up to 10J level.
Passively-cooled Modules
Specifications
| Model No. | Rod Diameter | Chip Quantity | Pump Power@200us,100Hz | Pulse Energy@200us,100Hz |
| SLD-4x3-4 | φ4 | 12 | 1800W | ＞90mJ |
| SLD-4x4-4 | φ4 | 16 | 2400W | ＞120mJ |
| SLD-4x5-4 | φ4 | 20 | 1800W | ＞150mJ |
| SLD-4x6-4 | φ4 | 24 | 1800W | ＞180mJ |
| SLD-4x7-4 | φ4 | 28 | 1800W | ＞210mJ |
| SLD-4x8-5 | φ5 | 32 | 1800W | ＞288mJ |
| SLD-4x10-5 | φ5 | 40 | 1800W | ＞360mJ |
