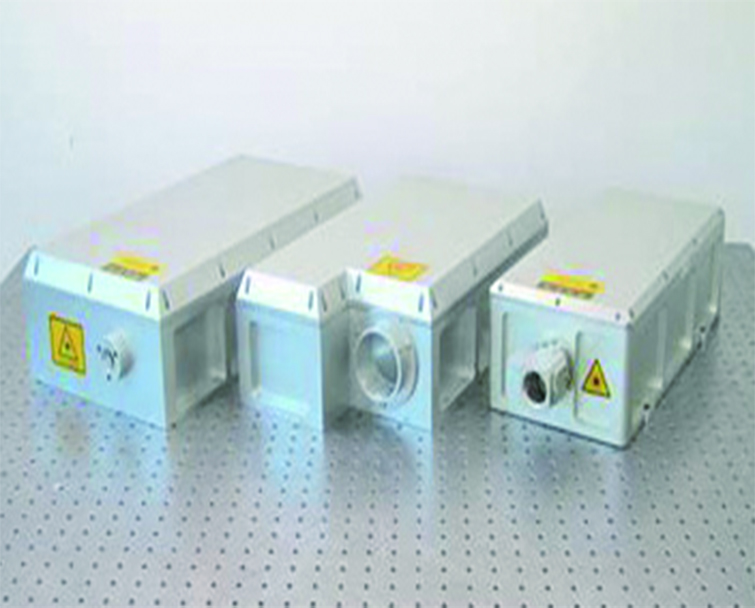

Side-pumped DPSS Laser

VCSEL-Pumped Solid-State Lasers (VPSSL) has great advantages to replace the QCW laser bar pumped Nd:YAG lasers and flash lamp pumped Nd:YAG lasers. It can be widely used in medical, industrial and scientific applications.

Specifications

Specification	Parameters
Pumping Source	Pulsed VCSEL Pumping
Repetition rate	0-200Hz
Wavelength	1064nm/532nm
Output energy@1064nm	0-35mJ
Output energy@532nm	0-18mJ
Pulse width	50-200ns
Beam profile	Gaussian/NFT
Beam size	1-6mm
Beam Mode	TEM00

Applications

Amplifier and Oscillator Pump

Amplifier and Oscillator Pump Amplifier and Oscillator Pumping
Laser Cleaning

Laser cleaning is mainly used for ship rust removal
LIBS

Hand-held LIBS Laser,for different spectral analaysis,like lithium mineral,iron,...
